CSS - Cascading Style Sheets

What is CSS ?

  • css defines how to display an html document (fonts, colors, layouts etc.)
  • were added to HTML 4.0 specification to solve a problem
  • usually css styles are specified in an external file
  • enables developers to change the layout and look of all documents in a web site by just editing a single file

Need for CSS

  • HTML was intended to define the structure of a document (i.e. headings, paragraphs, tables etc.), not the formatting of an element
  • when style attributes like font, color, background etc. were introduced, maintaining a large web page in which formatting/style information was scattered all over the document became a nightmare for web developers
  • so, HTML 4.0 allowed formatting information to be removed from the document and placed separately (in .css files)

A simple CSS example


		body {background-color: #aabbcc}
		h1 {font-style: italic; font-size: 36pt}
		h2 {color: blue}
		p {margin-left: 50px}

it specifies that:

  • the < body > tag should have a background color of #aabbcc
  • the < h1 > heading tag should use an italic font of size 36pt
  • the < h2 > heading tag should use a blue color for displaying text
  • a paragraph < p > tag should start at an offset of 50 pixels on the left

CSS syntax rules


selector { property: value; property: value; …}
where selector can be:
  • a tag name; ex.:

p { font-family: sans-serif }
  • a group of tags; ex.:

h1, h2, h3, h4, h5, h6 { color: red }
  • a class name (with or without a tag name):

p.right { text-align: right }
.right { text-align: right }

… in html document:
<p class="right"> Right aligned text </p>
  • an ID (with or without a tag name):

div#green { color: green }
#green { color: green }

… in html document:
<div id="green"> Green div… </div>
  • pseudo-classes and pseudo-elements

Pseudo-classes

  • syntax:
    selector:pseudo-class {property: value; …}
    selector.class:pseudo-class {property: value; …}
  • list of pseudo-classes:
    • anchor pseudo-classes:
      a:link {color:#FF0000} /* unvisited link */
      a:visited {color:#00FF00} /* visited link */
      a:hover {color:#FF00FF} /* mouse over link */
      a:active {color:#0000FF} /* selected link */
    • :first-child: matches an element that is the first child of any other element;ex.:
      p:first-child { color: blue }
    • > selector:first-child: matches an element that is the first child of a specific element; ex.: p > i:first-child { color: blue}
    • :lang: adds a style to an element with a specific lang attribute
    • :active: adds a style to an element that has keyboard input focus

Pseudo-elements

  • syntax:
    selector:pseudo-element {property: value; …}
    selector.class:pseudo-element {property: value; …}
  • list of pseudo-elements:
    • :first-letter – adds style to the first character of a text
      div:first-letter { font-size: xx-large; }
    • :first-line – adds style to the first line of a text
      div:first-line { color: red }
    • :before – adds content before an element
      h1:before { content: url(smiley.jpg)}
    • :after – adds content after an element
      h1:after { content: url(smiley.jpg)}

Adding style sheets to a document

  • external style sheet:

<head>
      <link rel="stylesheet" type="text/css" href="style.css"/>
</head>
  • internal style sheet:

<head>
	<style type="text/css">
	         p { margin-left: 10px }
	</style>
</head>
  • inline style sheet:

<p style="color: red; margin-left: 10px"/>

Multiple style sheets

  • if multiple style sheets are defined, their priority is (ascending order):
    1. browser default
    2. external style sheet
    3. internal style sheet
    4. inline style

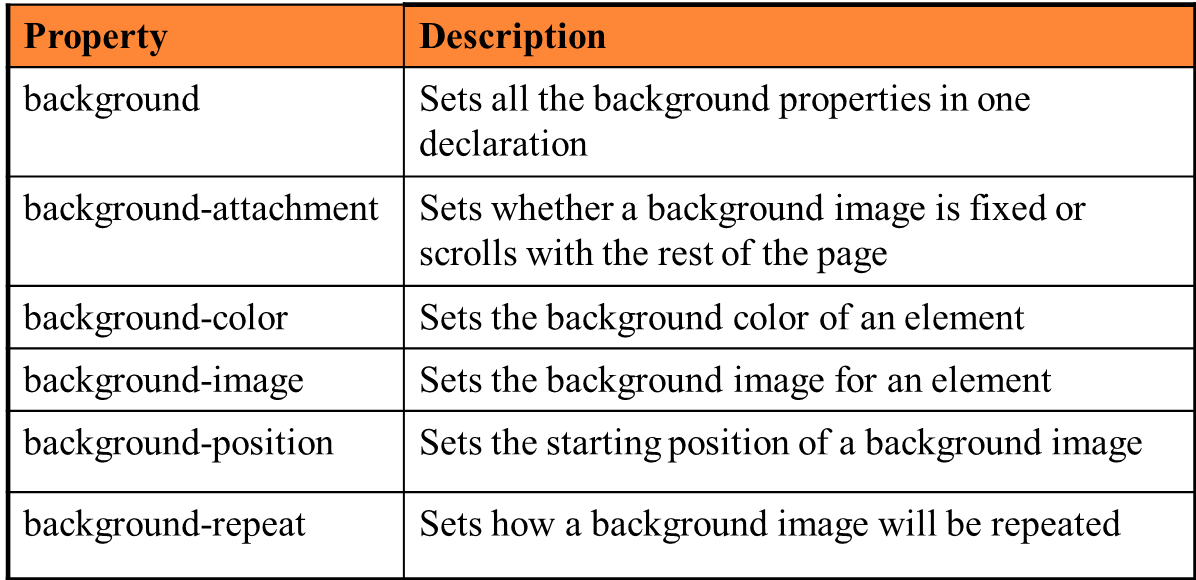

Background properties

Background CSS example


div
{
background-color:#0f0f0f;
background-image:url(‘back.jpg');
background-repeat:repeat-x;
background-position:top right;
}

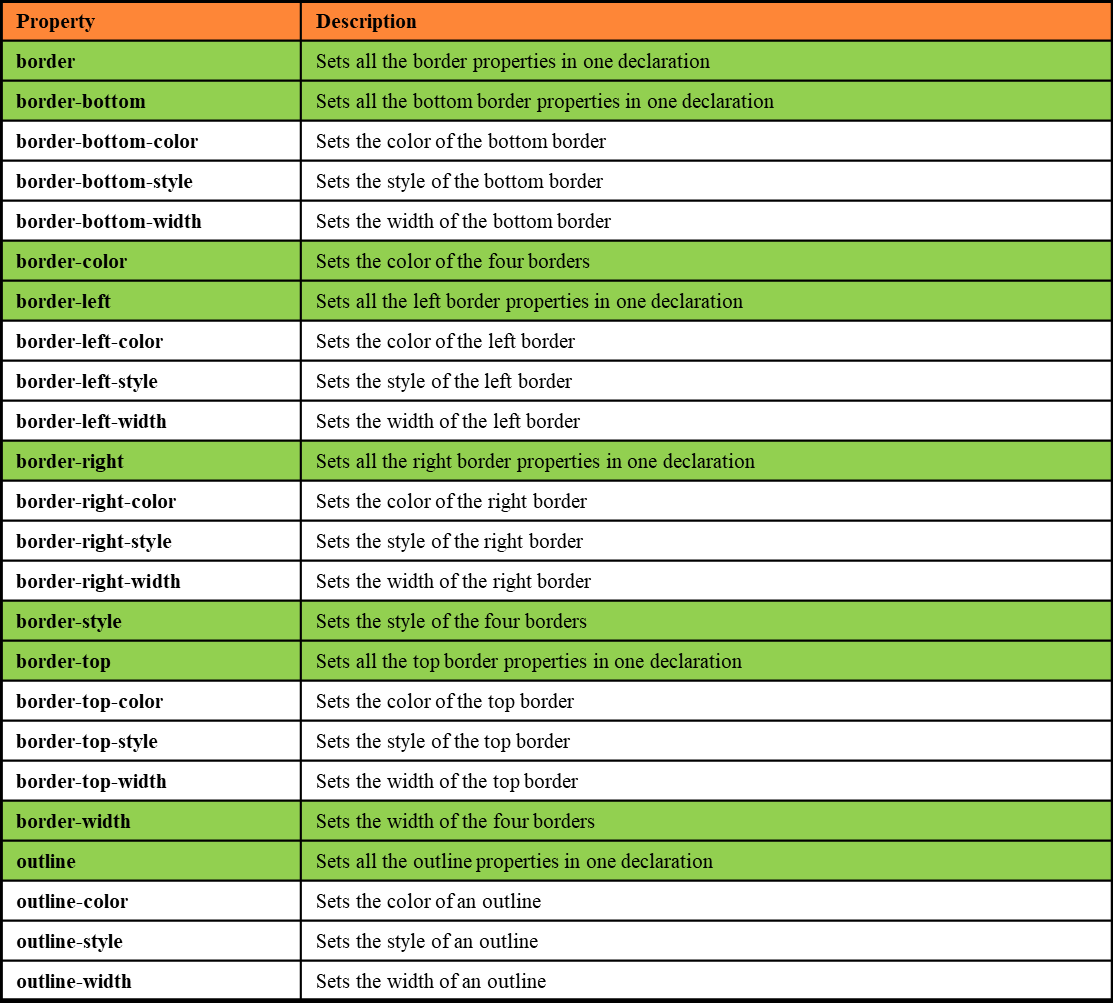

Border and outline properties

Border CSS example


div {
	border-top-style: solid;
	border-bottom-style: solid;
	border-left-style: dotted;
	border-right-style: dotted;
	border-width: 2px;
	border-color: #00ff00;
}

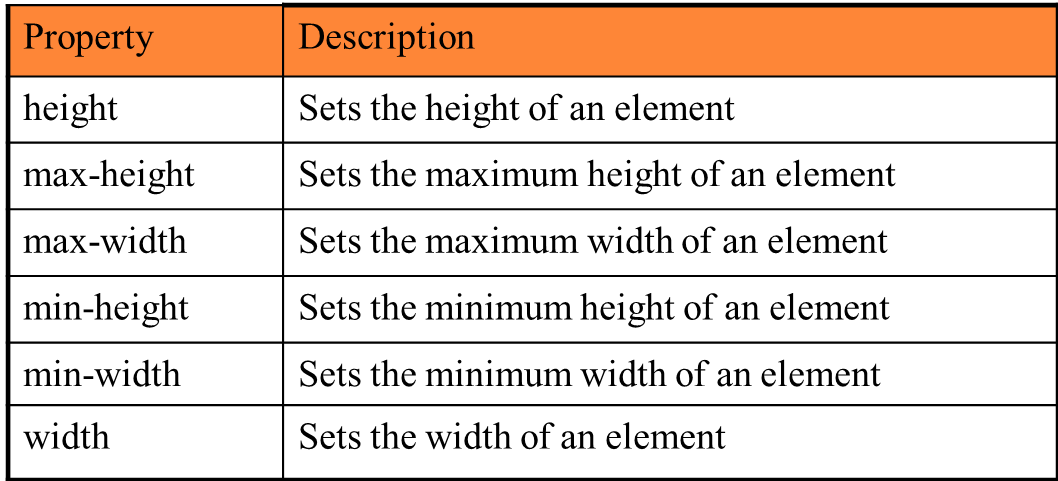

Dimension properties

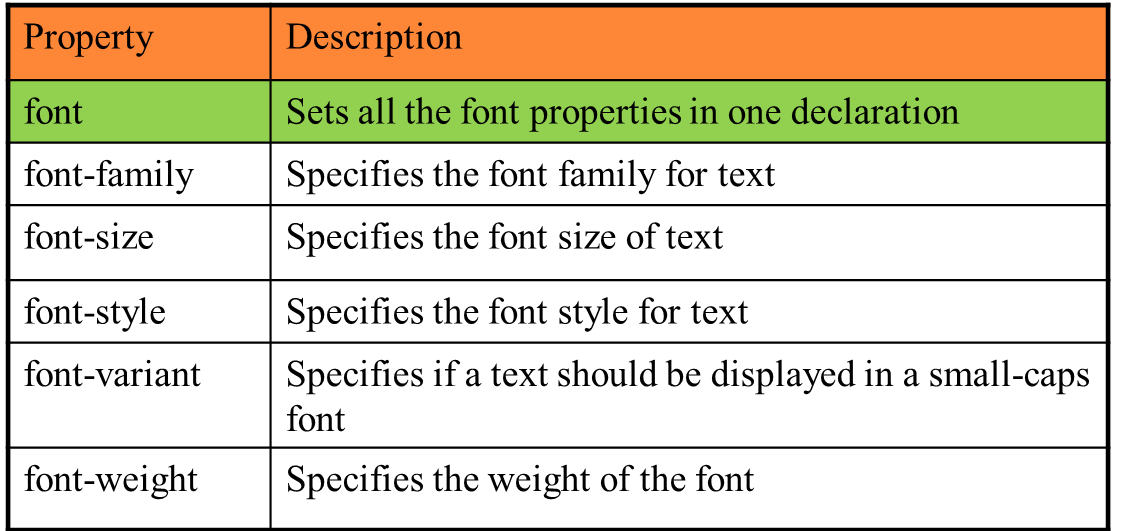

Font properties

Font CSS example


p, div {
	font-family:”Times New Roman”, Arial, Serif;
	font-style: italic;
	font-size: 12px;
}

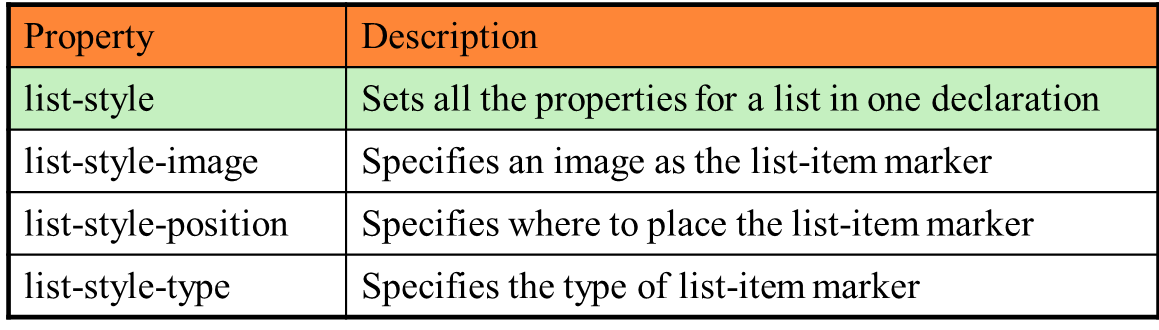

List properties

List CSS example


ul {
	list-style-type: circle;
	list-style-position: inside;
}

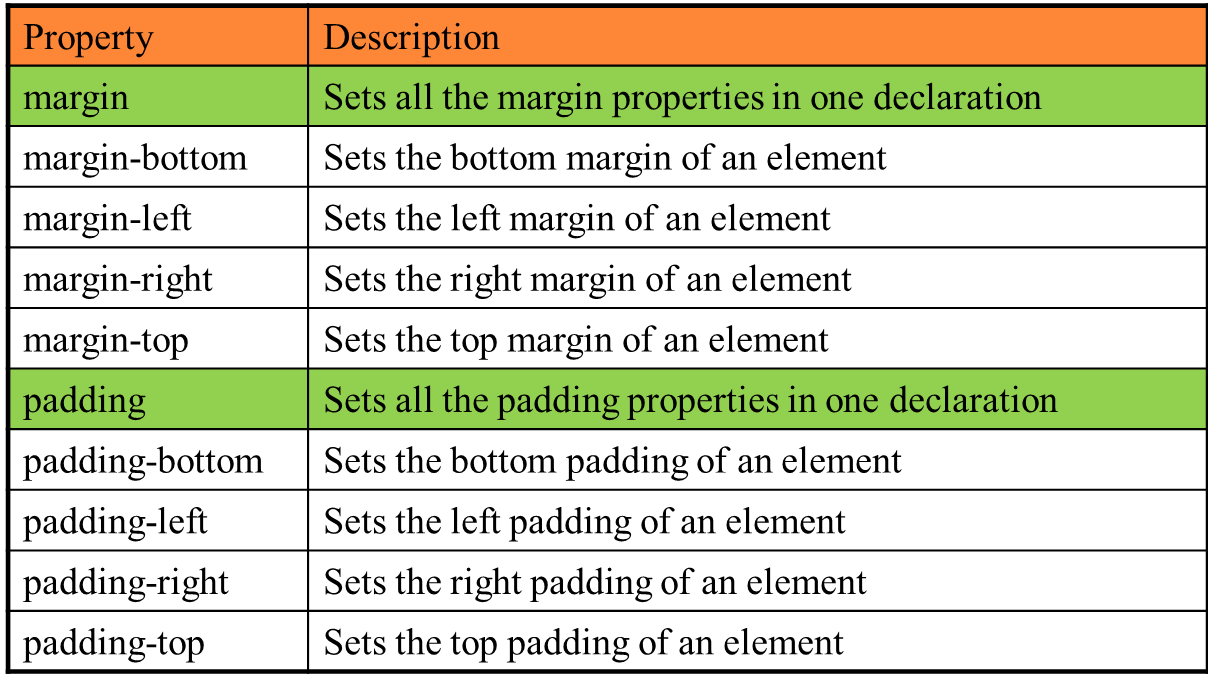

Margin and padding properties

Margin CSS example


div  {
	margin-top: 100px;
	margin-bottom: 100px;
	margin-left: 5%;
	margin-right: 5%;
}

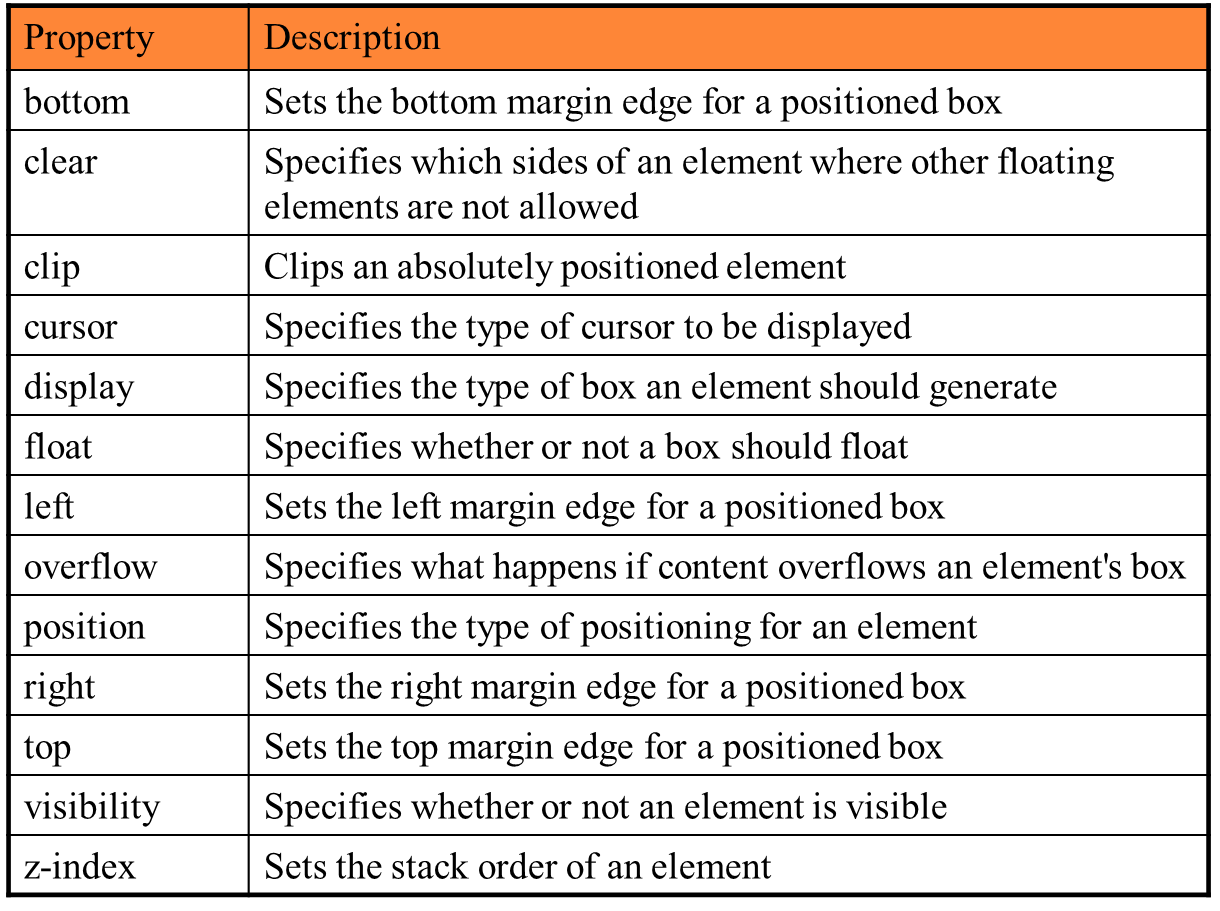

Positioning properties

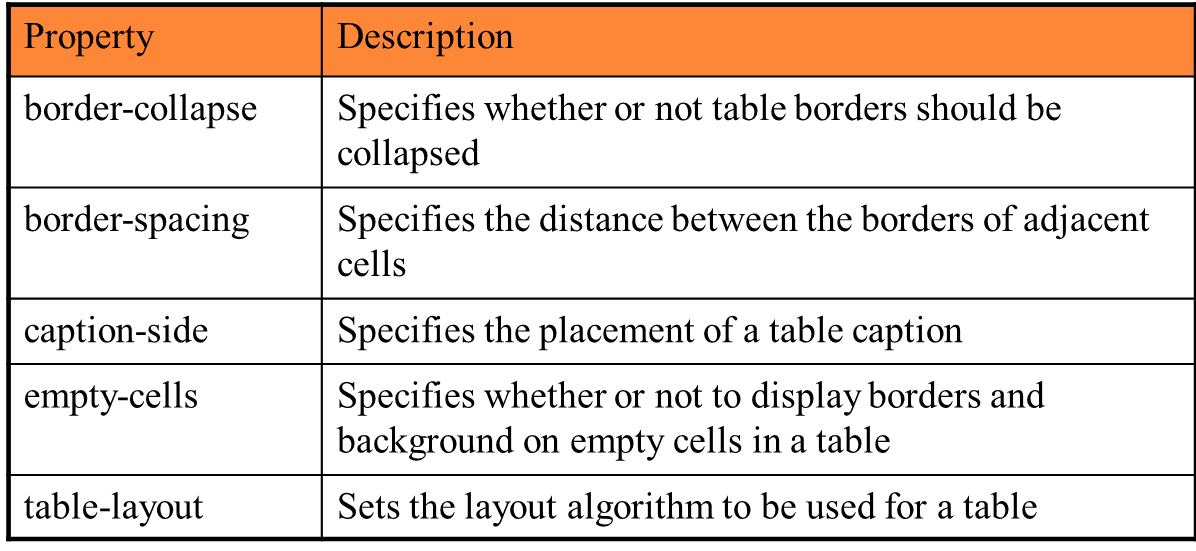

Table properties

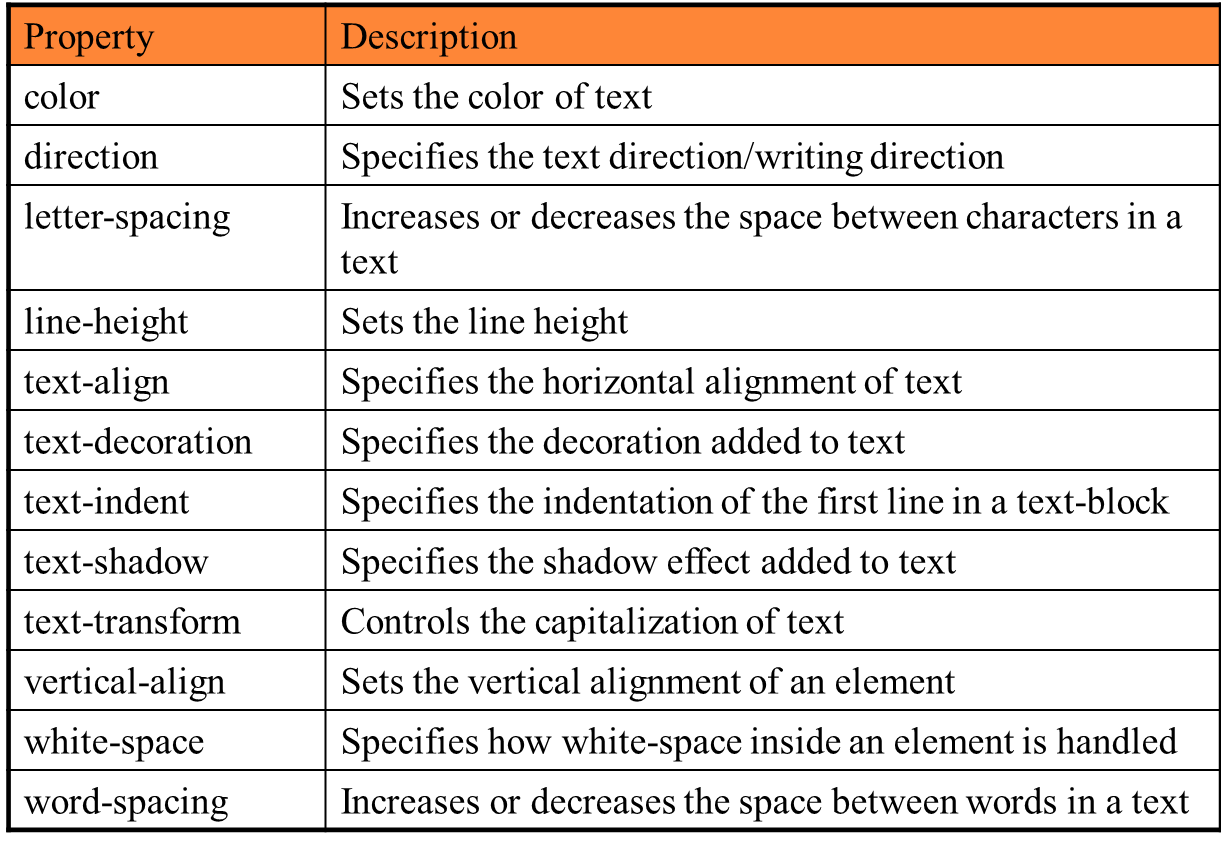

Text properties

Text CSS example


h1 {
	color: #00ddee;
	text-align: justify;
	text-decoration: underline;
      text-shadow: 10;
}

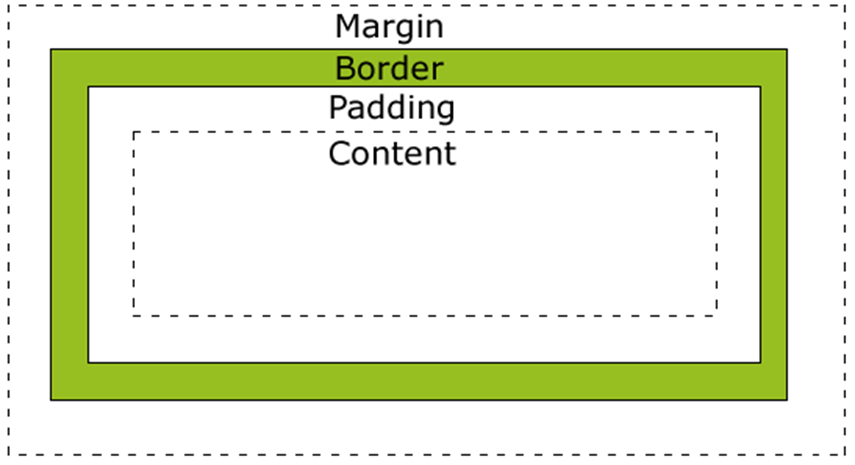

The CSS box model

  • each HTML element is a “box” from CSS perspective; it has a margin, border, padding and content

The CSS Box model (2)

  • Margin: clears an area around the border; does not have a background color, is completely transparent
  • Border: lies around content and padding; has the background color of the box
  • Padding: clears an area around the content; has the background color of the box
  • Content: the actual content (text) of the box
  • the height and width attributes do not specify the total height and width of the HTML element; they are calculated by:

Total width=width+left padding+right padding+left border+ right border+left margin+right margin
Total height=height+top padding+bottom padding+top border+ bottom border+top margin+bottom margin

Displaying and visibility

  • hiding an element with consuming space:
    visibility: hidden;
  • hiding an element without consuming space:
    display: none;
  • html elements are displayed as:
    • block – element takes the full width available and has a line break before and after it (e.g. h1, p, div)
    • inline – element takes as much width as necessary and does not force line breaks (e.g. a, span)
  • set the display mode with the display property (e.g. display: inline; display: block;)
  • make an image transparent:
    opacity: x – on Firefox, x between 0.0 and 1.0
    filter:alpha(opacity=x) – on IE, x between 0 and 100.

Positioning

  • static positioning: the default mode; a static element is positioned according to the normal flow of the page;
  • fixed positioning: element will not move even if the window is scrolled (position: fixed; top: 20px; right: 40px); elements are removed from the normal flow and can overlap other elements
  • relative positioning: element is positioned relative to its normal position; element can be moved and overlap other elements , but the reserved space form the element is preserved in the normal flow (position: relative)
  • absolute positioning: element is positioned relative to the first parent element that has a position other then static (if none, ); elements are removed from the normal flow and can overlap other elements; (position: absolute)
  • z-index property defines the stack order of an element

Floating

  • with floating, an html element can be pushed left or right allowing other elements to wrap around it
  • html elements can float horizontally left or right (not vertically)
  • configured using the the float: left | right | none | inherit display property
